Detect the noise by acoustic imaging

We deliver it as turnkey sytem, ready to use.

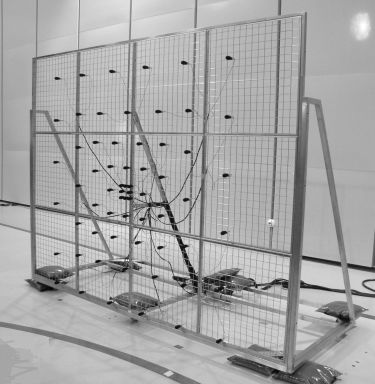

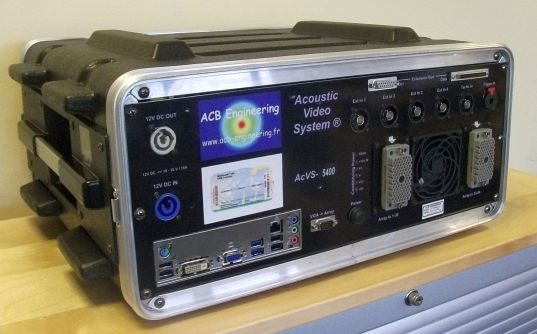

AcVS Versatile range is able to drive antennas of AcVS portable range (antennas "50", "100", "200") and drive SpyFrame antennas until 64 channels in baseline

AcVS Versatile range can be detailed in 4 configurations as :

1. ACVS 5380-32 = 32 channels and best sample frequency at 156 000Hz
2. ACVS 5400-32 = 32 channels and best sample frequency at 200 000Hz
3. ACVS 5380-64 = 64 channels and best sample frequency at 75 000Hz
4. ACVS 5400-64 = 64 channels and best sample frequency at 200 000Hz



Versatile range is able to answer at every requirement in the industrial and research fields :

• Acoustic images moving in real time on the portable digital screen in the aim to explore acoustic environment.
• Save very short events, and continuous recording in very long time.
• 5 isolated specific sensors inputs (tachymetry, accelerometer, ...).
• Save from 20Hz to 50 000 Hz and process by Acoustic Picture Maker, selecting holography mode in close low frequency measurements, selecting beamforming mode in far away middle or high frequency measurements, selecting Beam+ in the aim to improve resolution similar as holography but in far away measurements.
• Database of antenna geometries (1D,2D,3D). It can be created its own geometry.



Versatile range can be extended in 96, 128 or 160 channels by A/D bus developed by ACB Engineering.
If you are interested in one systems our in some consulting do not hesitate to call us and we will be very happy to organize a demonstration !
When you know the price of our systems you will surely by one !
